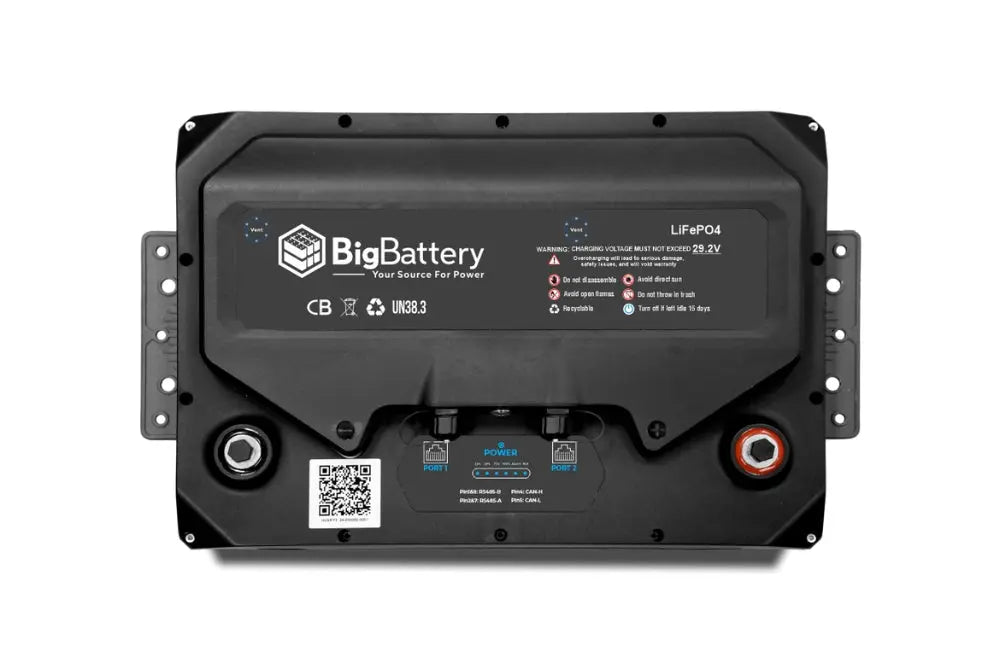

24V - 200Ah - 5.12kWh LiFePO4 - Husky 2 INV Lithium Marine Battery

Included:

• 2 × HUSKY 2 Carrying Handle

• 2 × L Mounting Bracket

• 2 × M8 Screws

• 1 × Red & Black Terminal Rubber Cover

• 1 × 2AWG 3FT Red & Black Ring to Ring Terminal Cables (CBL086)

Specifications:

• System Voltage: 24V

• Nominal Voltage: 25.6V

• Chemistry: LiFePO4

• Capacity: 5.12kWh / 200Ah

• Charging Voltage Range: 27.8V – 28V

• Max Charge Voltage: 29.2V

• Operating Voltage Range: 24V – 28.8V

• Suggested Low Voltage Cutoff: 24V – 25.4V

• BMS Cutoff Range: 21V – 23.5V

• Cell Configuration: 8S

• Max Continuous Discharge Current: 200A

• Max Continuous Power: 5120W

• Max Discharge Peak Current: 300A (5 sec)

• Max Charge Current: 150A

• Charge Temperature Range: -4°F – 113°F (-20°C – 45°C)

• Discharge Temperature Range: -4°F – 131°F (-20°C – 55°C)

• Optimal Discharge Temp: 59°F – 95°F (15°C – 35°C)

• Storage Temperature Range: -4°F – 113°F (-20°C – 45°C) (Max 6 months)

• Weight: 95 lb (43.1 kg)

• Dimensions (L × W × H): 18.1 × 12.6 × 9.8 in (460 × 320 × 249 mm)

• Max Connections: Up to 16 in parallel

• Protection Rating: IP65 / NEMA 4X

• Communications: CANBus / RS485

• Self-Heating: Yes

Warranty

BigBattery batteries are backed by a 12-year warranty, giving you reliable long-term performance and confidence in every charge. Designed for durability and engineered to last, our batteries are built to power your setup for over a decade.
