24V - 64Ah - 1.63kWh LiFePO4 - Eagle 2 Lithium Marine Battery

The EAGLE 2 Lithium Marine Battery provides so much more than efficient, long-lasting lithium power storage. This battery comes standard with advanced features that enhance the safety and visibility of your power. Not only does the EAGLE 2 come equipped with a LED capacity meter on the top of the unit, but also supports CANBus communication protocols, so you can always monitor the status and performance of your battery system. Plus, the EAGLE 2 is IP67-rated for comprehensive protection against dust, water, and other contaminants while you’re cruising around the campsite or warehouse.

But that’s not all. The EAGLE 2 Lithium Marine Battery was designed to support your applications through every season. Whether you’re going boondocking in the heat of summer, or working at the warehouse or job site in the dead of winter, the EAGLE 2’s advanced BMS supports a wide temperature operating range, and a self-heating function ensures that you never have to put your vacation or work day on pause due to unreliable power. Quit worrying about your power and get back to working hard and playing harder when you equip your vehicle with the all-new EAGLE 2 from BigBattery. Shop the 24V EAGLE 2 & EAGLE 2 Kits today.

Silent Power. Endless Comfort.

Run your fridge, AC, and lights without the noise the Eagle 2 keeps your RV powered anywhere.

Power That Elevates Performance

Upgrade your scissor lift with the 24V Eagle 2. Get more cycles, faster charging, and reliable lithium power to keep your crew productive all day.

Power That Sweeps Competition.

Replace outdated lead-acid with the 24V Eagle 2. Longer runtimes, zero maintenance, and reliable lithium power to keep your sweeper running shift after shift

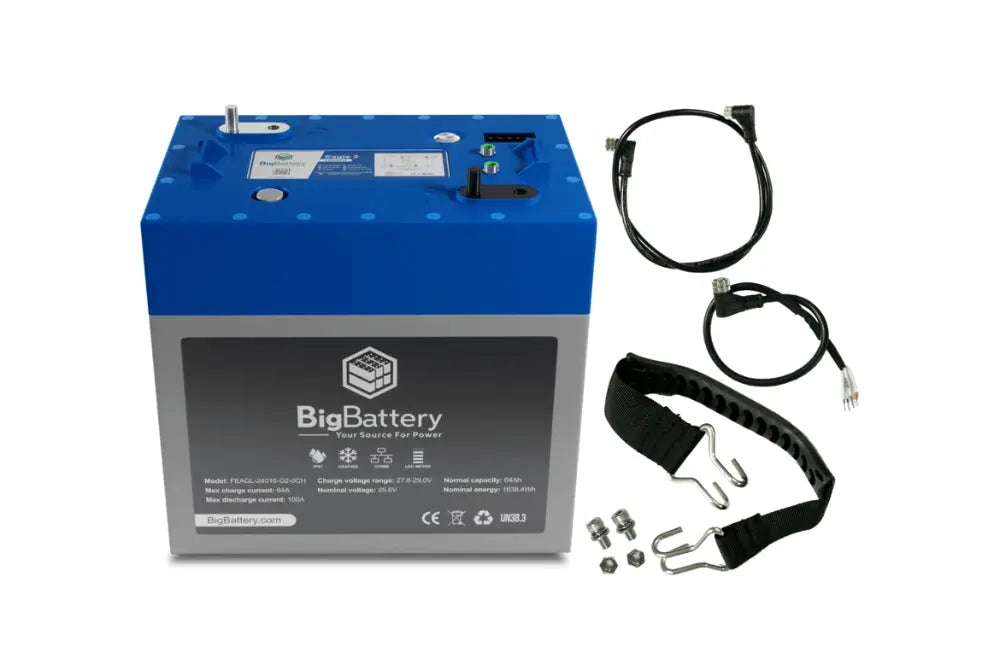

Included:

• 24V EAGLE 1.6kWh LiFePO4 Battery with Heater


• Eagle 2 Carrying Handle


• Eagle 2 CAN Comm Cable


• Parallel CAN Comm Cable


• M8 Nuts & Screws

Specifications:

• System Voltage: 24V

• Nominal Voltage: 25.6V

• Chemistry: LiFePO4

• Capacity: 1.63kWh / 64Ah

• Charging Voltage Range: 27.8V – 29V

• Max Charge Voltage: 29.2V

• Operating Voltage Range: 24V – 28.8V

• Suggested Low Voltage Cutoff: 24V – 25.4V

• BMS Cutoff Range: 21V – 23.5V

• Cell Configuration: 8S

• Max Continuous Discharge Current: 100A

• Max Continuous Power: 2560W

• Max Discharge Peak Current: 200A (5 sec)

• Max Charge Current: 64A

• Charge Temperature Range: -4°F – 131°F (-20°C – 55°C)

• Discharge Temperature Range: -4°F – 140°F (-20°C – 60°C)

• Optimal Discharge Temp: 59°F – 95°F (15°C – 35°C)

• Storage Temperature Range: 23°F – 95°F (-5°C – 35°C) (Max 3 months) / 32°F – 77°F (0°C – 25°C) (Max 12 months)

• Weight: 38 lb (17.2 kg)

• Dimensions (L × W × H): 10.2 × 7.1 × 10.8 in (260 × 180 × 274 mm)

• Max Connections: Up to 10 in parallel

• Protection Rating: IP67 / NEMA 6

• Communications: CANBus

• Self-Heating: Yes

Warranty

BigBattery batteries are backed by a 12-year warranty, giving you reliable long-term performance and confidence in every charge. Designed for durability and engineered to last, our batteries are built to power your setup for over a decade.
