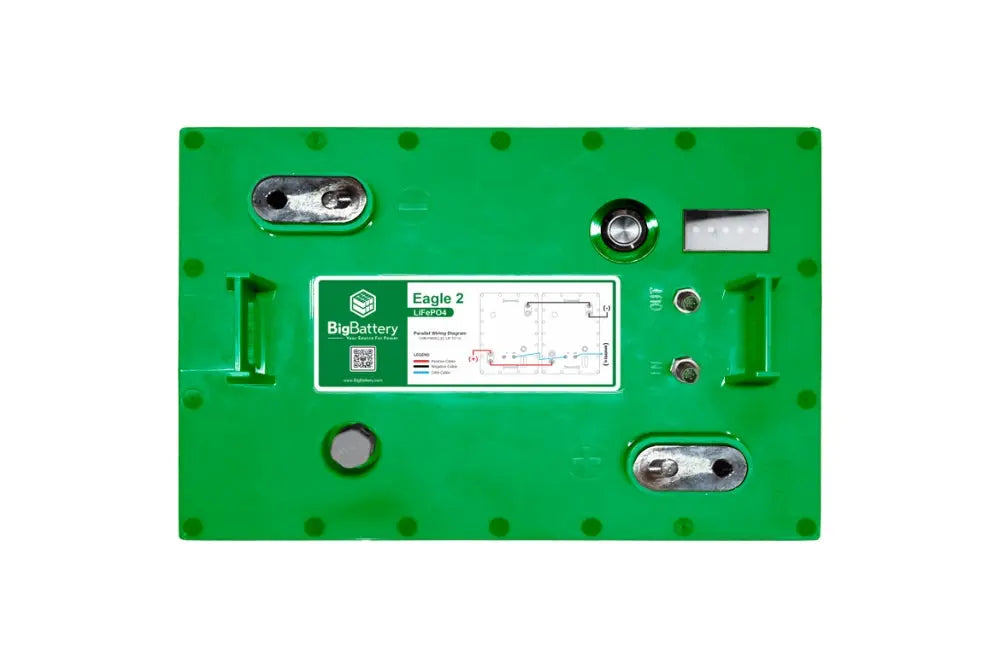

But the EAGLE 2 Lithium Marine Battery provides so much more than efficient, long-lasting lithium power storage. This battery comes standard with advanced features that enhance the safety and visibility of your power. Not only does the EAGLE 2 come equipped with an LED capacity meter on the top of the unit, but it also supports CANBus communication protocols, and the EAGLE Kit comes with its own external capacity meter, so you can always monitor the status and performance of your battery system, even while your batteries are tucked away in their battery tray. Plus, the EAGLE 2 features a fully reimagined, IP67-rated casing for comprehensive protection against dust, water, and other contaminants while you’re on the road.
But that’s not all. The EAGLE 2 Lithium Marine Battery was designed to support your adventures through every season. Whether you’re hitting the links on a hot summer day, or going boondocking in the middle of winter, the EAGLE 2’s advanced BMS supports a wide temperature operating range, and a self-heating function allows for superior cold weather charging, ensuring your adventures never get cut short due to unreliable power. Quit worrying about your power and get back to making memories with friends and family when you equip your vehicle with the all-new 48V EAGLE 2 from BigBattery. Shop the 48V EAGLE 2 & EAGLE 2 Kits today.

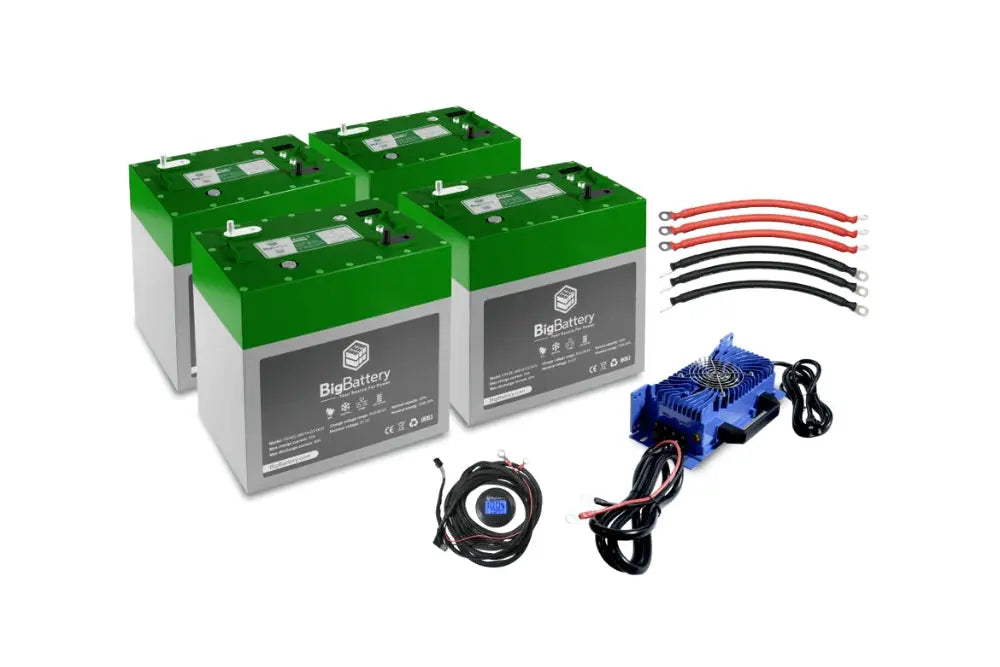

Included:
-

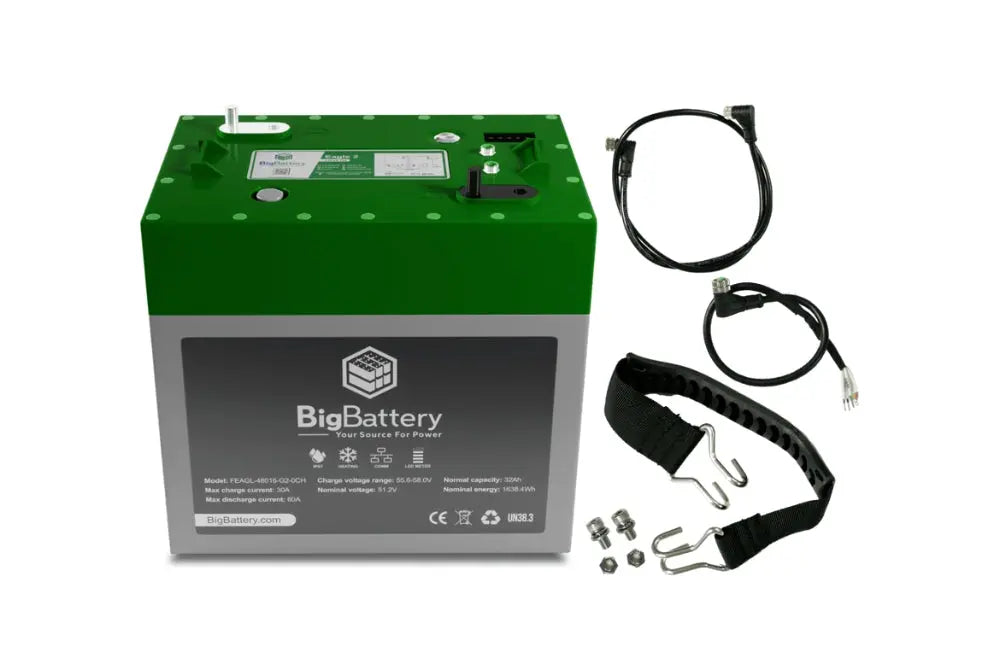

4 × 48V EAGLE 2 – LiFePO4 – 32Ah – 1.63kWh - Golf & Utility Carts -FEAGL-48016-G2
-

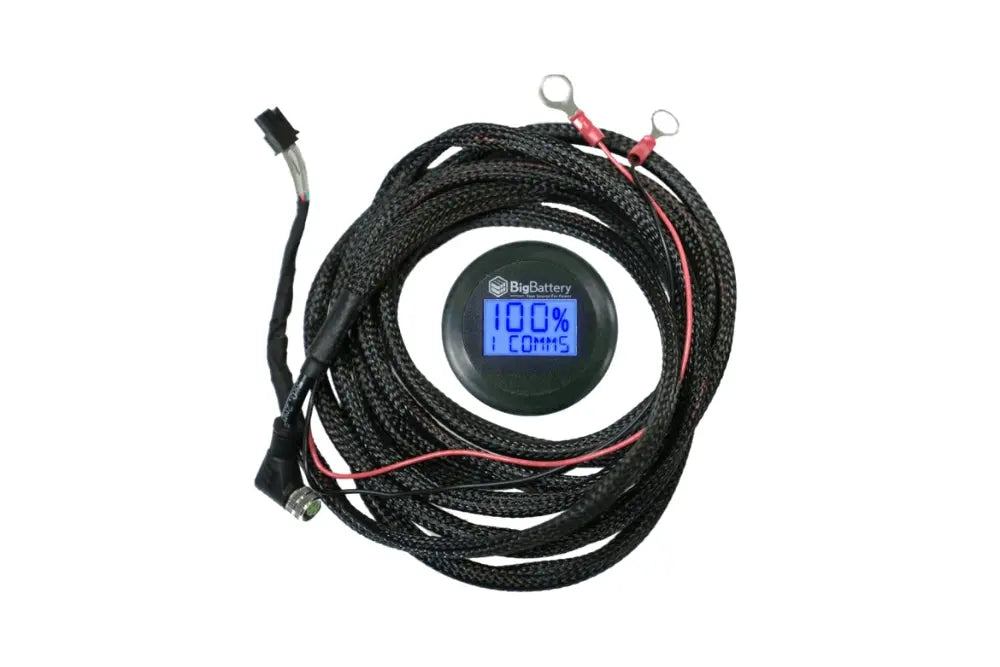

1 × EAGLE 2 COMM SOC Meter - MTR107
-

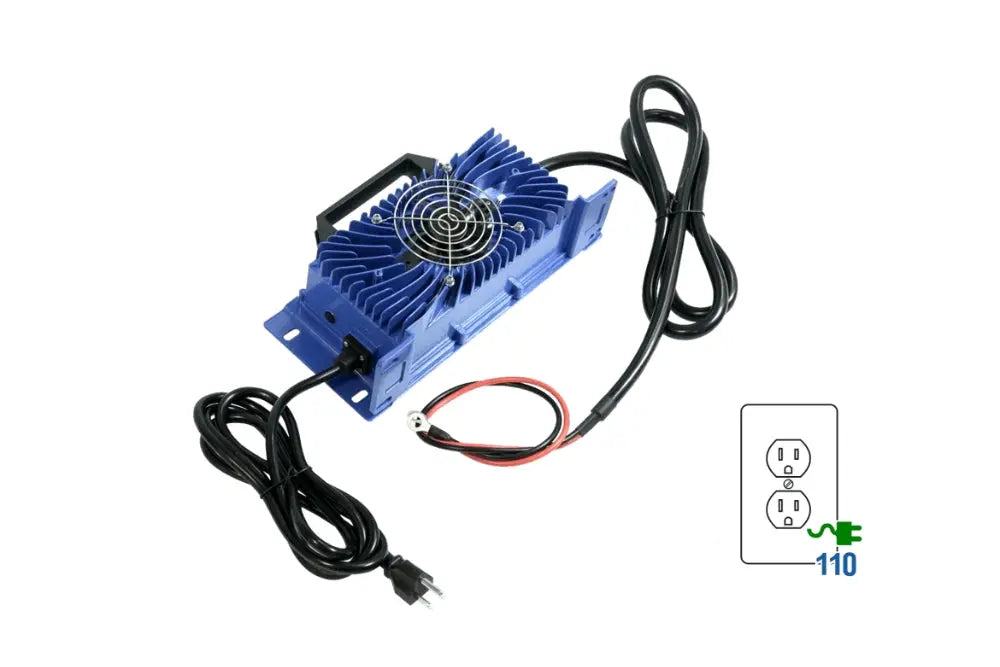

1 × 48V 110V AC 20A IP65 Blue Charger - PWS053
-

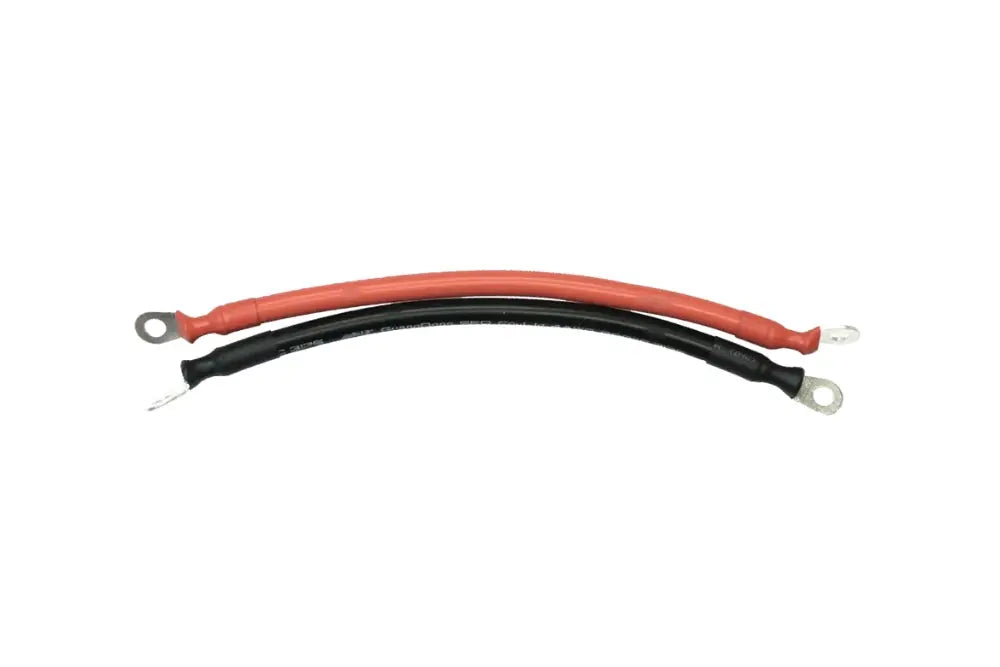

3 × 4AWG Black Cable with 11 inches Ring to Ring Terminal - CBL080
-
3 × 4AWG Red Cable with 11 inches Ring to Ring Terminal - CBL081
Specifications:
-
System Voltage: 48V
-
Nominal Voltage: 51.2V
-
Chemistry: LiFePO4
-
kWh Capacity: 1.63kWh
-
Ah Capacity: 32Ah
-
Charging Voltage Range: 55.6 – 58V
-
Max Charge Voltage: 58.4V
-
Operating Voltage Range: 48 – 58.8V
-
Suggested Low Voltage Cutoff: 48 – 50.8V
-
BMS Cutoff Range: 42 – 47V
-
Cell Configuration: 16S
-
Max Continuous Discharge Current: 60A
-
Max Continuous Power: 3072W
-
Max Discharge Peak Current: 200A (Max 3 seconds)
-
Max Charge Current: 30A
-
Charge Temperature Range: -4°F – 131°F (-20°C – 55°C)
-
Discharge Temperature Range: -4°F – 140°F (-20°C – 60°C)
-
Optimal Discharge Temperature Range: 59°F – 95°F (15°C – 35°C)
-
Storage Temperature Range: 23°F – 95°F (-5°C – 35°C) (Max 3 months), 32°F – 77°F (0°C – 25°C) (Max 12 months)
-
Weight: 38 lb (17.2 kg)
-
Depth: 7.1 in (180 mm)
-
Width: 10.2 in (260 mm)
-
Height: 10.8 in (274 mm)
-
Max Connections: Up to (10) Parallel
-
Protection Rating: IP67 / NEMA 6
-
Communications: CANBus
-
Self-Heating: Yes
Warranty
BigBattery batteries are backed by a 12-year warranty, giving you reliable long-term performance and confidence in every charge. Designed for durability and engineered to last, our batteries are built to power your setup for over a decade.
